Characteristics
1. High efficiency in electrical / optical conversion, wind cooling ;
2. Small in size, with high beam output quality, high reliability;
3.The marking speed is 3~12 times of first and second generation of laser markers;
4.No consumable ,12 years service life of the laser source,energy saving;
5.Low power consumption(800W).
Applicable materials and industries
1.used for fields with higher requirements in depth, smoothness and precision;
2.used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons, bitmap marking etc
Technical specifications

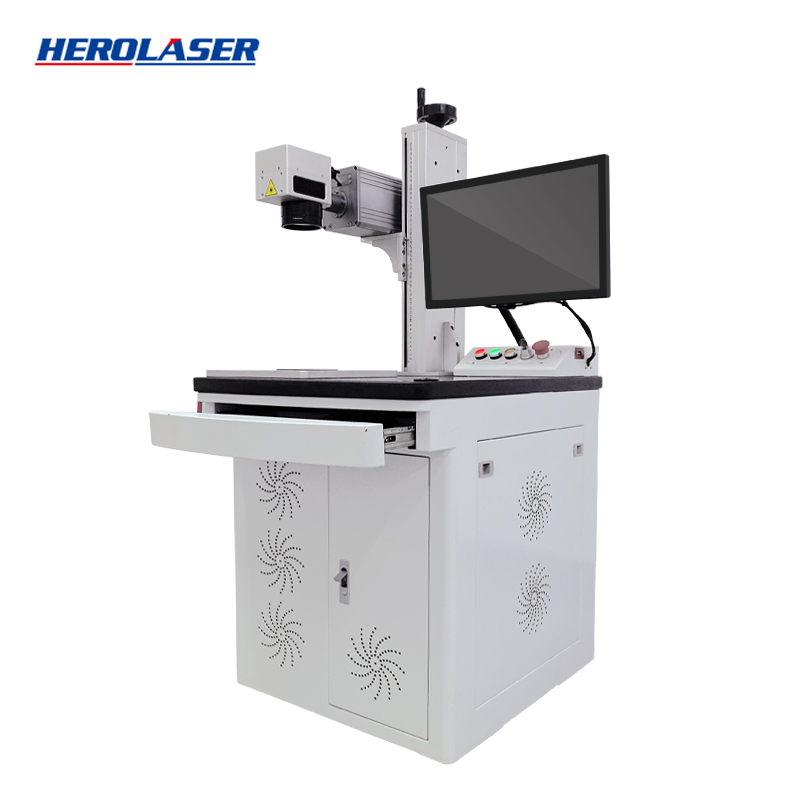

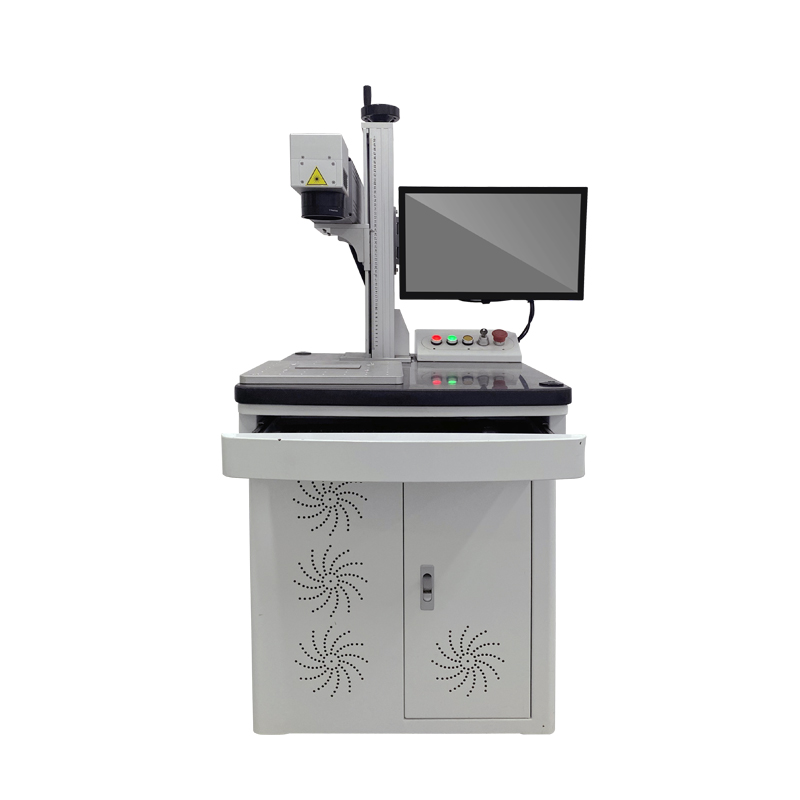

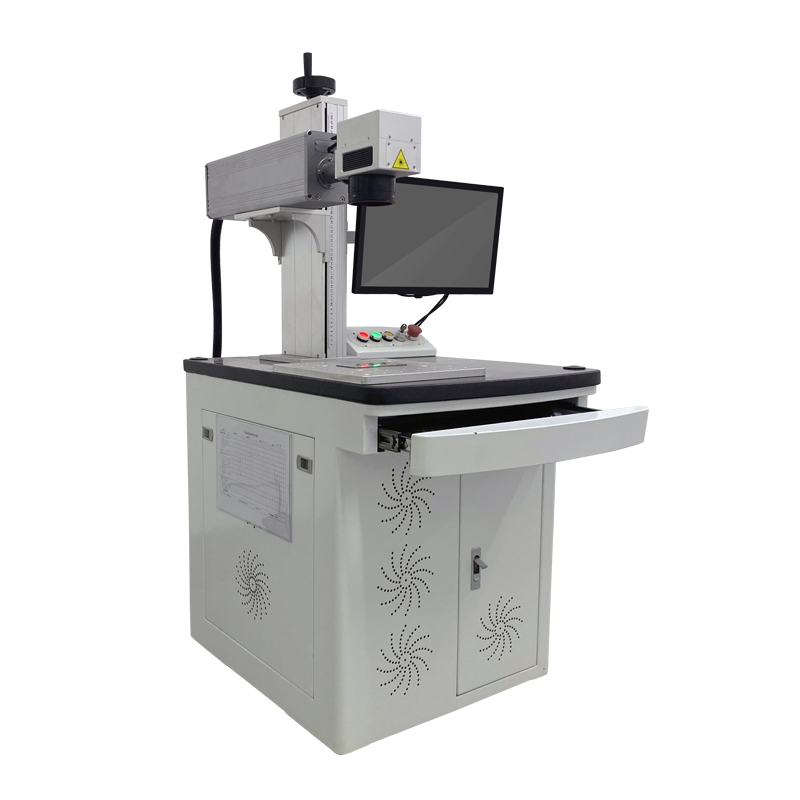

Model ML-MF-W20H
Laser Power 20W
Laser wavelength 1064nm
Repeating Frequency 20-100KHZ
Beam Quality M<2
Marking Range 100mm x 100mm(Optional)
Marking Depth 0.1-4mm(depend on material)
Marking Speed ≤7000mm/s
Min.line Width 0.01mm
Min.Character 0.15mm
Repeatability Accuracy ±0.002
Power Supply 220V±10% / 50-60Hz
Power Consumption 800W
Dimensional 1110mm x 860mm x 1520mm
Weight ≤100kg
Operating System Win98/Win2000/WinXP/Win 7
Cooling Way Built-in air cooling
Control Interface Standard USB
File Format All character styles from character store of OS
Laser Type Pulse
Serial number | project | parameter |
---|---|---|
One | Equipment model | ML3015B |
Two | Laser wavelength | 1070nm |
Three | Maximum output power | 500W-3000W |
Four | Effective cutting range | 3000mm×1500mm |
Five | Cutting thickness | Apparent laser power and material |
Six | Cutting speed | Apparent laser power and material |
Seven | Positioning accuracy of worktable | ≤±0.05mm |
Eight | Electricity demand | AC380V ± 5%/ 50Hz |
Nine | Power consumption of the whole machine | ≤7.5KW |
Ten | Cabinet size | 7750mm*2600mm*2170mm |
Eleven | Load bearing of machine tool | 800KG |
