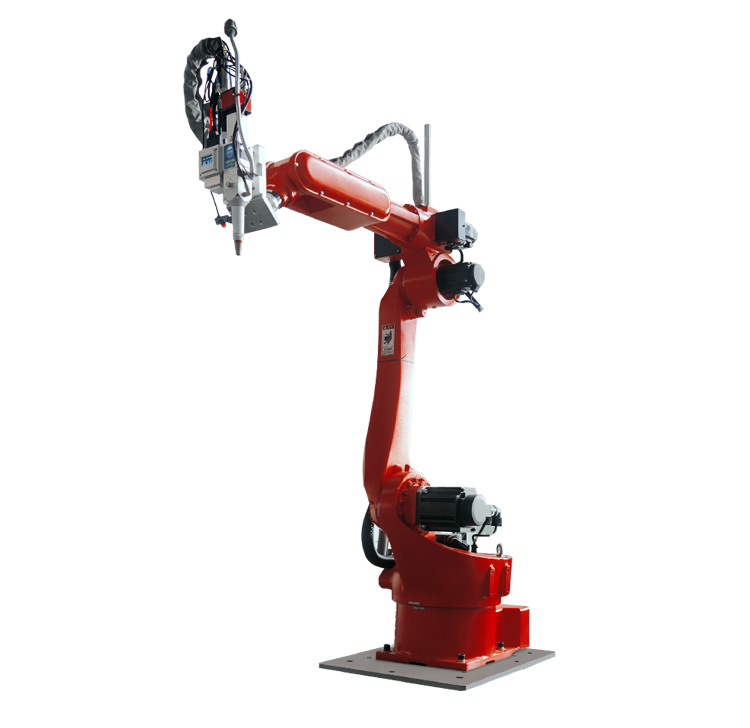

Herolaser robot laser welding

Laser welding machine
Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc. The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.
Make an inquiry now
Product introduction

Parameter
Technical Parameters
Power(Laser Source)
1000W,1500W,2000W
Wavelength
1080nm
Working Mode
Continuous / Modulation
Material Thickness
SS、Aluminum Alloy≤3mm
Control System
ML Laser Control System
Aiming & Positioning
CCD、Red Light Indicator
Cooling
Water Cooling
Power(Machine)
5KW ~10KW
Power Demand
380V±10%,50Hz/60Hz AC
Equipment Configuration List
Name
Specification
Quantity
Remark
Six-axis Manipulator
Repeat Positioning Accuracy 0.05mm
1 Set
QX1600 (With base)
Fiber Laser Source

1 Set

WOBBLE Welding Head
Made by Herolaser
1 Set
Domestic

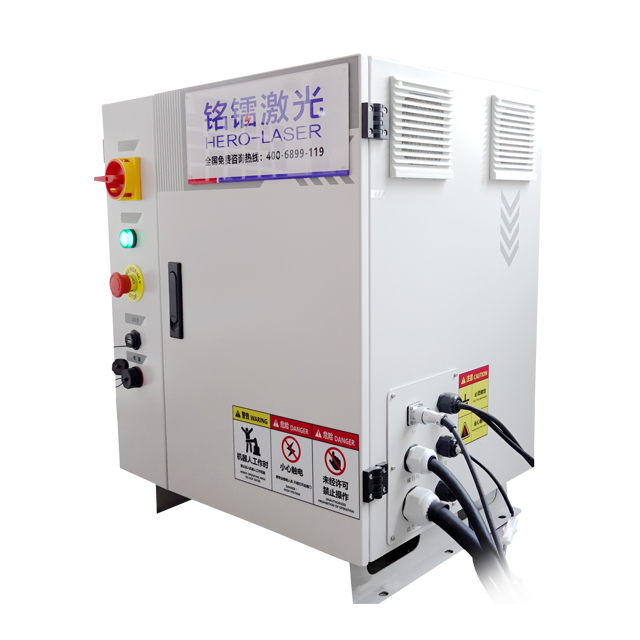

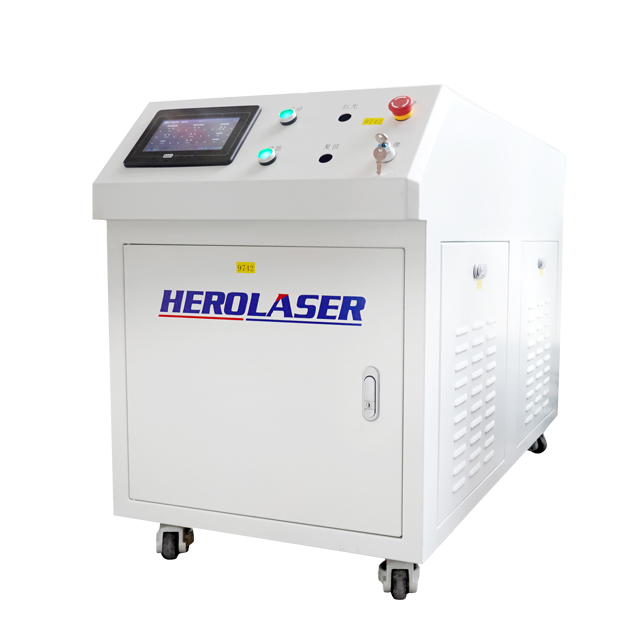

Host Cabinet
Herolaser Customized
1 Set
Domestic
CCD Observation System
Dedicated for Welding
1 Set
Domestic
Wire Feeding Device
Herolaser Customized
1 Set

Products Description

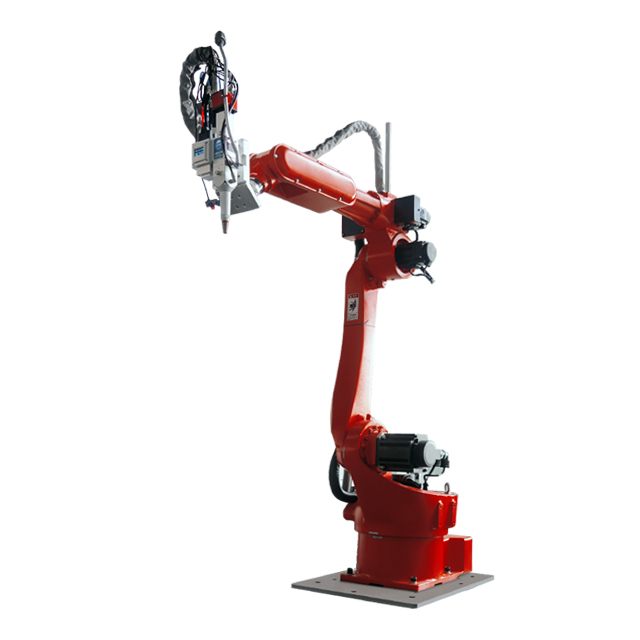

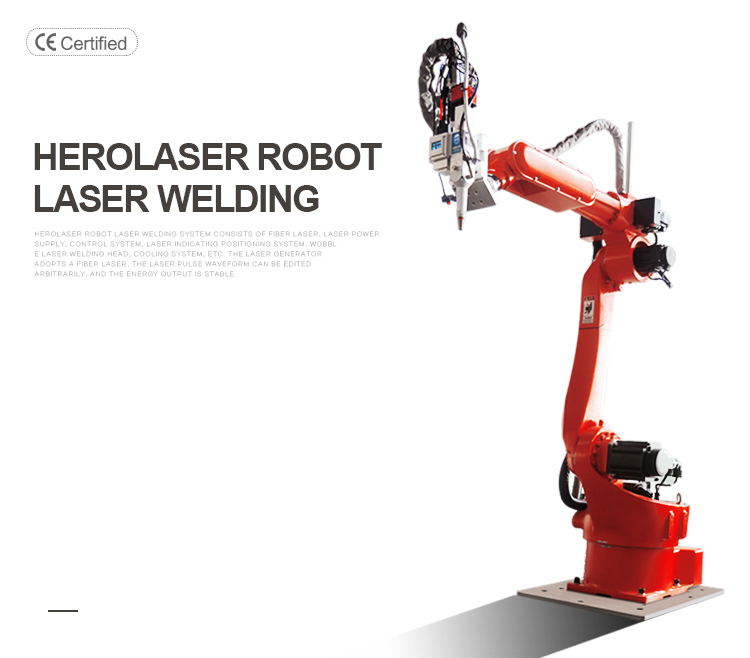

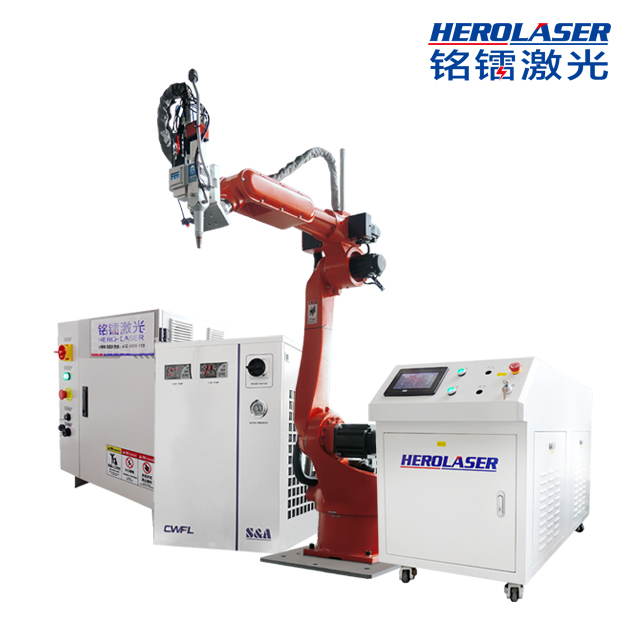

Herolaser robot laser welding

Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc.
The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.

The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.

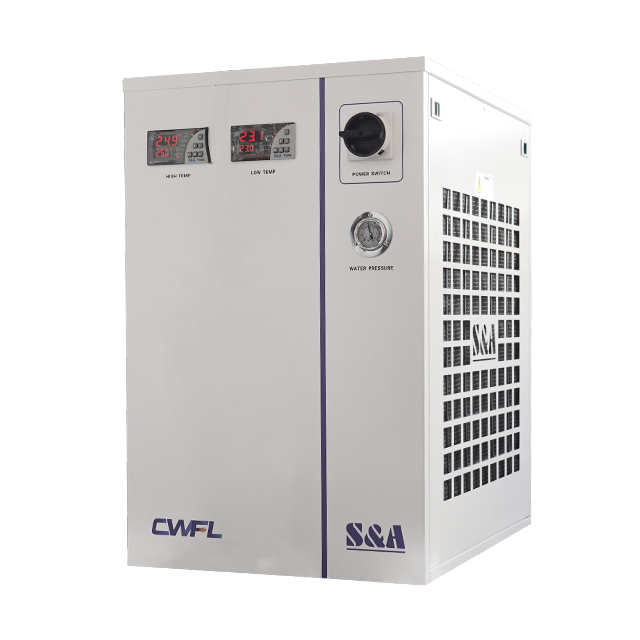

The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.
The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.
If the temperature exceeds the upper limit, the system will automatically turn off the laser to avoid damage to the laser.
After the machine is turned on, the water circulation and the radiator form heat exchange with the outside world, which quickly removes the heat generated when the laser is working, ensuring that the laser is working properly.
The cooling system and the whole machine adopt an integrated design to make the system more concise and occupy a smaller area.

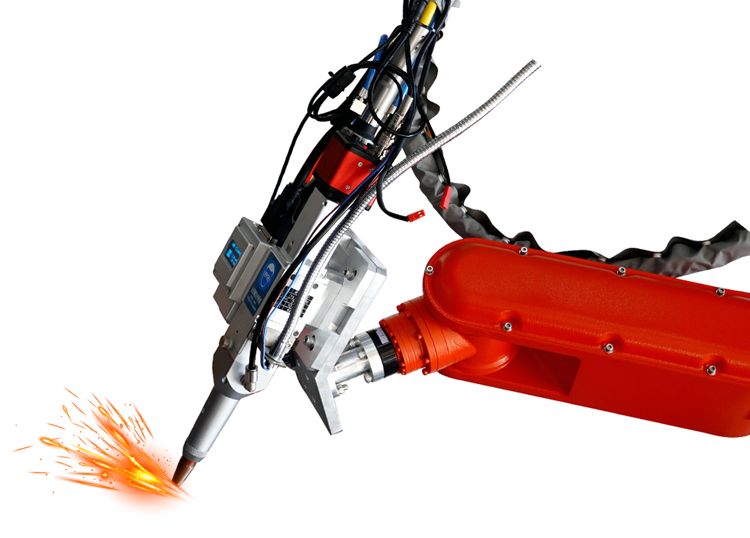

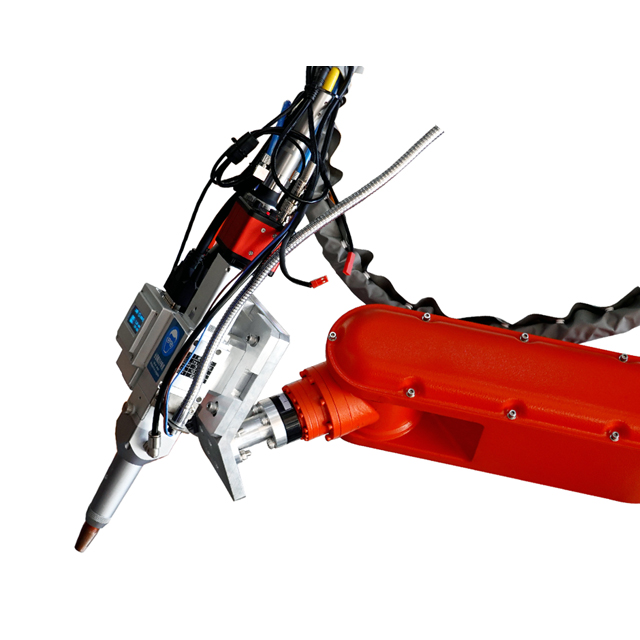

Wobble Welding Head

Wider applications, large workpieces, workpieces with wider welding seams can be welded

Advantages of wobble welding machine technology
1. High quality spot welding    2. The allowable range of weld width is expanded    3.Beautiful weld
4. Can weld a variety of metals     5. Low laser power requirement    6.  Process stability

Angle welding of various complex products

It can carry out flexible transmission and non-contact welding for difficult-to-access precision parts, which has great flexibility Adapt to the welding seam, tailor welding, butt welding and stitch welding of various complex products

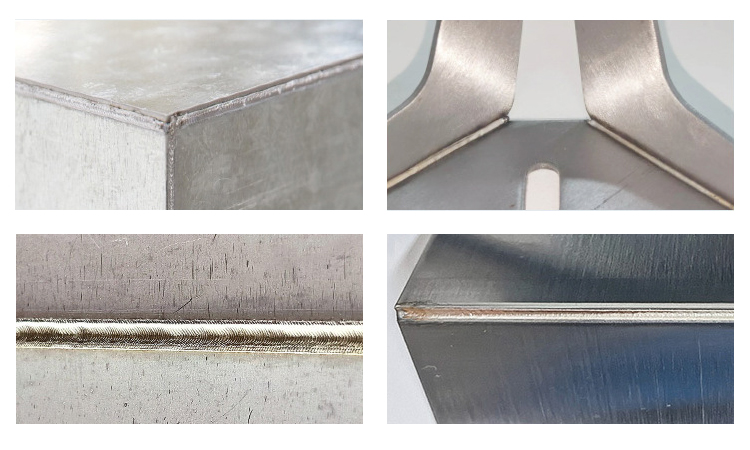

Sample Show
Applicable Industry

Car Manufacturer

Shipbuilding Industry

Metal Processing

Fitness Equipment

Aerospace

Construction Machinery

Installation Instructions

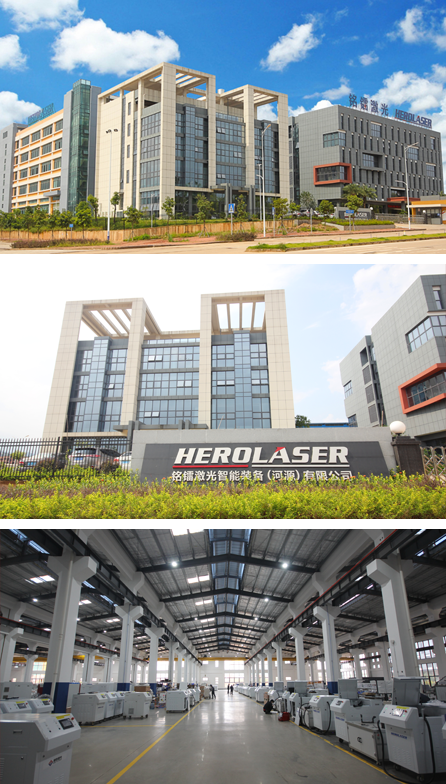

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

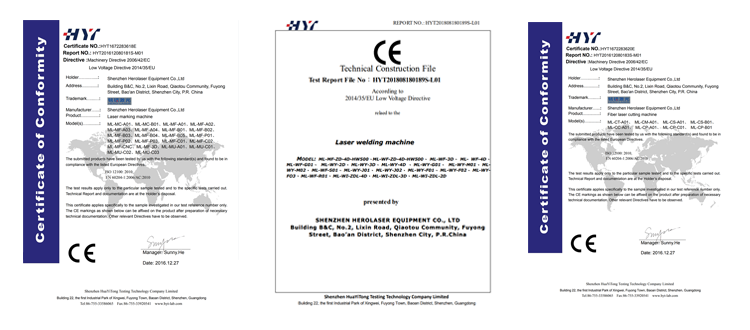

Certification

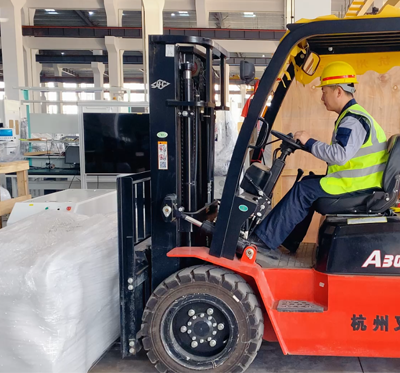

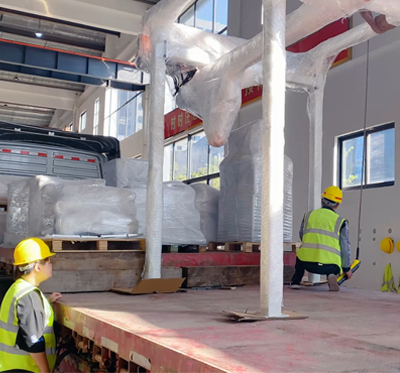

Packaging & Shipment
Our Services

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?

T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?

Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?

Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?

We offer two years warranty for laser source, one year for the machine.

10.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
